单选题 选择正确的A-A移出断面图
学科：机械制图与CAD基础 Ⅰ＆Ⅱ
时间：2023-12-17 12:07:48
相关题目
相关作业
题目1单选题
选择正确的移出断面图 <img src="https://tihai-oss-cloud.itihey.com/img/a075c046e7d9281c18a2fd4eda970234.png">A. noneB. (1)C. (2)D. (3)
题目2单选题
选择正确的A-A移出断面图 <img src="https://tihai-oss-cloud.itihey.com/img/0fe1fd34ab6225cb0279c7f8c7673f26.png">A. (a)B. (b)C. (c)D. (d)
题目3单选题

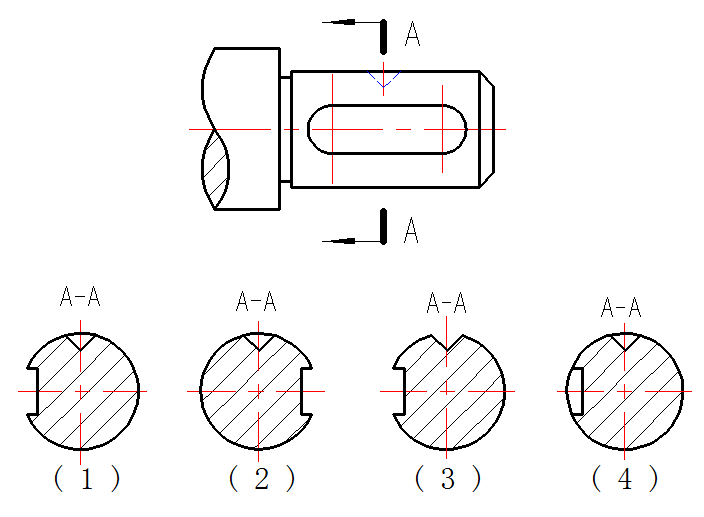

选择正确的A-A移出断面图<img src="https://tihai-oss-cloud.itihey.com/img/7919c7a1b328623012c8124f74010083.png">A. (1)B. (4)C. (2)D. (3)
题目4单选题
选择正确的A-A移出断面图 <img src="https://tihai-oss-cloud.itihey.com/img/c3dd8e7c7ee98c808e1ae28a118a4e61.png">A. (2)B. noneC. (1)D. (3)
题目5单选题
选择正确的移出断面图 <img src="https://tihai-oss-cloud.itihey.com/img/b982994826cfe5fce210f50e726844a2.png">A. (2)B. (1)C. (3)D. none
题目6单选题
选择正确的B-B移出断面图 <img src="https://tihai-oss-cloud.itihey.com/img/071ce811faca3e84d4b8f079cfc4a466.png">A. (3)B. (1)C. (2)D. none
题目7单选题
有关断面图的概念,下面描述正确的是( ). ‏A. 断面图与剖视图没有区别B. 重合断面的轮廓边界线画粗实线C. 移出断面的轮廓边界线画粗实线D. 断面图分为三种类型
题目8单选题
想象轴的形状和结构,选择正确的移出断面图. ( ) <img src="https://tihai-oss-cloud.itihey.com/img/f1f75847e91471eb22bd6f020d508be7.png">A. <img src="https://tihai-oss-cloud.itihey.com/img/32a5d2a317a0e0f3b07582b2678dc460.png">B. <img src="https://tihai-oss-cloud.itihey.com/img/41e6723a97fd8780ac1379a78793abd8.png">C. <img src="https://tihai-oss-cloud.itihey.com/img/d172f9076bef6decd596877423208bb6.png">D. <img src="https://tihai-oss-cloud.itihey.com/img/3381d708acdde11654188a9cc3628268.png">
题目9单选题
选择正确的左视图( ). <img src="https://tihai-oss-cloud.itihey.com/img/0b2878a0976f43eeabca1fb20675145f.png">A. <img src="https://tihai-oss-cloud.itihey.com/img/95e9f0f112f6a422cbbff69da2d7b69e.png">B. <img src="https://tihai-oss-cloud.itihey.com/img/46b24a08c4c65e6818e87bcbc2c1ffff.png">C. <img src="https://tihai-oss-cloud.itihey.com/img/227cbb6264d7de3e9ee02142e89520e4.png">D. <img src="https://tihai-oss-cloud.itihey.com/img/00739f05d0991728640e25b26610272c.png">
题目10单选题
选择正确的重合断面( )A. <img src="https://tihai-oss-cloud.itihey.com/img/6afd14436f1d852e3b06274e9ca8eab9.png">B. <img src="https://tihai-oss-cloud.itihey.com/img/f7df12c2a4f01fcf389fec1c33229eb7.png">C. <img src="https://tihai-oss-cloud.itihey.com/img/2bce562ca695c88b6d69722a34352692.png">D. <img src="https://tihai-oss-cloud.itihey.com/img/821655565ae3089c839dfc6cc4fb4426.png">
