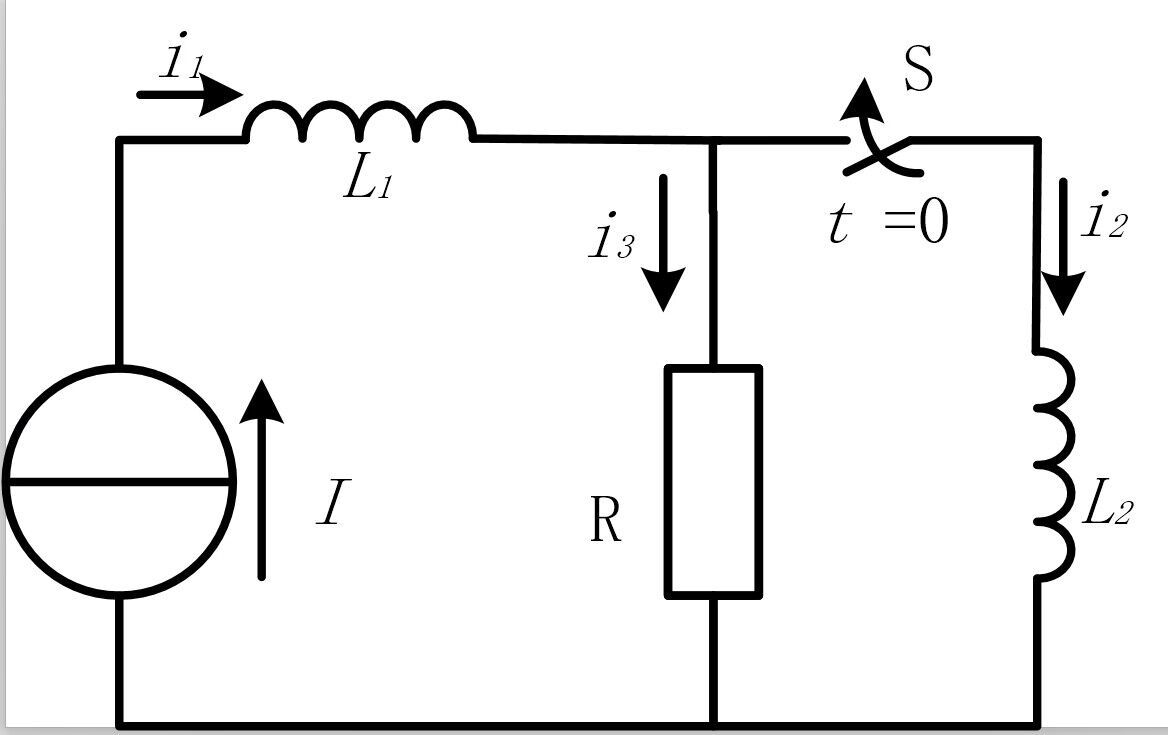

单选题 图3-2-12所示电路开关S闭合前电路已处于稳态.当开关闭合后各电流状况为( ).
图3-2-12
A.
、
、
均不变
B. 不变、增长为、衰减为零
C. 增长、增长、不变
D. 、、均增长
学科：电工电子技术基础
时间：2024-11-15 06:19:44
