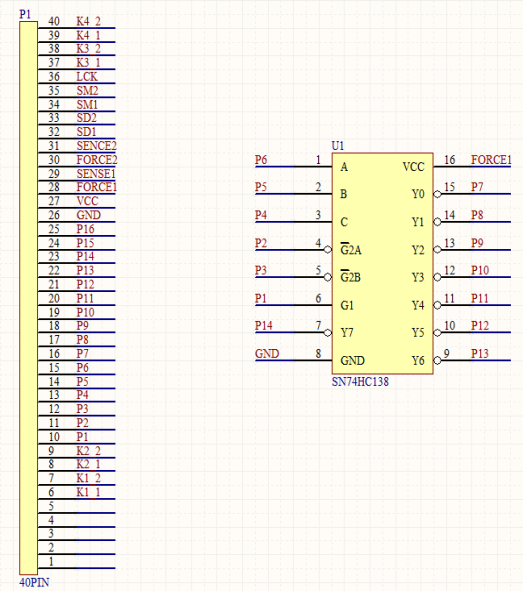

填空题 根据电路设计图,将下列功能测试程序补充完整 void Function( ) { _reset(); _wait(10); ________(1,3,5); //设定芯片电源管脚输出5V电压 ________(5,0,4.5,1);//设置四个参考电平 _on_fun_pin(1,2,3,4,5,6,7,8,9,10,11,12,13,14,0); _sel_drv_pin(________________,0);//选定输入管脚 _sel_comp_pin(_________________,0);//选定输出管脚 Mprintf("………G1=H, G_2A=L, G_2B=L ,CBA=LLL,Y=LHHHHHHH?…………\n"); _set_drvpin("L",__________,0);//设置低电平 _set_drvpin("H",__________,0);//设置高电平 _wait(5); if(_read_comppin("L",__________ ,0)&&(_read_comppin("H",_________,0))//读输出电平 Mprintf("\t\t test error\n"); else Mprintf("\t\t test OK\n"); _wait(10); }
